Unlock Endless Possibilities with the ASUS IoT Tinker Board Series of Single-board Computers (SBCs) and Systems

The ASUS IoT Tinker Board series is an ideal choice for developers looking to create custom embedded and edge projects. The Tinker Board series features powerful Arm processors, advanced connectivity options, and a range of hardware interfaces, making it easy to create custom IoT solutions for a wide range of applications.

With its small size, low power consumption, and support for a variety of software platforms, the Tinker Board series is a versatile and flexible platform for creating IoT devices that need reliable performance in diverse operating environments.

Whether you're building a retail application, a public transportation kiosk, or a remote monitoring solution, the ASUS IoT Tinker Board is the perfect tool for bringing your ideas to life.
Benefits of the Tinker Board Series for Your Application
  • Low Power: With energy-efficient Arm processors and advanced power management features, developers can create solutions that can run on battery power for extended periods
  • Compact Form Factor: The compact design of the board allows it to fit into space-constrained applications
  • High Performance: Embedded with powerful multi-core Arm processors and the Arm-based Mali GPU, they support advanced processing capabilities, visual and audio use cases, and modern AI-applications
  • Long Product Lifecycle: Each model is guaranteed to be available for at least seven years from the date of its launch.
  • Operating System Support: They support both Linux (ex: Debian), Yocto, and Android OS
Comparing ASUS IoT Tinker Board Single-Board Computers
Model Tinker Board 3N Tinker Board V Tinker Board R2.0/
Tinker Board S R2.0		 Tinker Board 2/
Tinker Board 2S		 Tinker Edge T Tinker Edge R
SoC/CPU Rockchip RK3568 Renesas RZ/Five RISC-V AndesCore™ AX45MP Single core 1.0 GHz Rockchip RK3288-CG.W Rockchip RK3399 NXP i.MX 8M Rockchip RK3399Pro
GPU Arm® Mali™-G52 Arm® Mali™ - T760 MP4 GPU @ 600 MHz Arm® Mali™ - T860 MP4 GPU @ 800 MHz GC7000 Lite Arm® Mali™ - T860 MP4 GPU @ 800 MHz
Memory Dual-CH LPDDR4/LPDDR4X 2/4/8GB 1GB DDR4 Dual-CH LPDDR3 2/4GB Dual-CH LPDDR4 2/4GB Dual-CH LPDDR4 1GB Dual-CH LPDDR4 4/2GB (SYSTEM) + LPDDR3 2/1GB (NPU)
Storage
  • none/32GB/64GB eMMC
  • 1 x Micro SD (TF) card slot (push & pull)
 16GB (optional)
  • 16/32GB eMMC* (*Only available on S model)
  • 1x Micro SD (TF) card slot (push & pull)
  • 16/32GB eMMC* (*Only available on S model)
  • 1x Micro SD (TF) card slot (push & pull)
  • 8GB eMMC
  • 1 x Micro SD (TF) card slot (push & pull)
  • 16GB eMMC
  • 1 x Micro SD (TF) card slot (push & pull)
Operating System Support Debian 11/
Android 12		 Support Linux Debian, Yocto Support Debian 10/
Android 11		 Support Debian 10/
Android 11		 Mendel Support Debian 10/
Android 9
Dimension 4" x 4" (100 x 100 mm) 3.9" x 2.8" (100 x 72 mm) 3.37" x 2.125" (85 x 56 mm) 3.37" x 2.125" (85 x 56 mm) 3.37" x 2.125" (85 x 56 mm) 3.9" x 2.8" (100 x 72 mm)
Rear I/O 2 x RJ45 LAN
2 x USB 3.2 Type-A
1 x USB 3.2 Type-C OTG
1 x 3.5 Audio Jack
1 x HDMI Type-A		 2 x RJ45 LAN
1 x Micro USB
1 x Micro USB (OTG)
2 x CAN Bus
2 x COM RS232		 1 x RJ45 LAN
4 x USB 2.0 Type-A
1 x 3.5 Audio Jack
1 x HDMI		 1 x RJ45 LAN
3 x USB 3.2 Type-A
1 x USB 3.2 Type-C OTG
1 x HDMI		 1 x RJ45 LAN
2 x USB 3.2 Type-A
1 x USB 3.2 Type-C OTG
1 x HDMI		 1 x RJ45 LAN
3 x USB 3.2 Type-A
1 x USB 3.2 Type-C OTG
1 x 3.5 Audio Jack
1 x HDMI
Internal I/O (More details in Complete Specification) 2 x COM 232 port
1 x COM 32/422/485
1 x CAN Bus 2.0B FD
1 x USB 2.0 port
1 x 12-pin header		 1 x 20-pin header 1 x 40-pin header 1 x 40-pin header 1 x 40-pin header 1 x 40-pin header
Complete Specification Datasheet: Tinker Board 3N Datasheet: Tinker Board V Datasheet: Tinker Edge T Datasheet: Tinker Edge R
ASUS IoT Tinker Board Systems
The Tinker Board Systems are Arm-based PCs integrated with 10.1” and 15.6” touch screens – and mounted onto a panel or enclosure. They are ready-to-use for a variety of retail, commercial, and industrial systems.

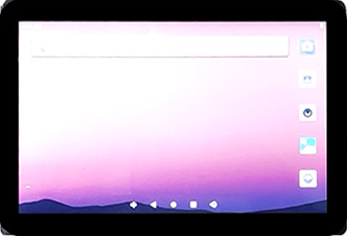

PP-101W-3399
10.1-inch Arm-based open-frame touch PC
Applications:
  • Kiosks
  • Point-of-sale (PoS) displays
  • Other retail and commercial applications
Complete Specification

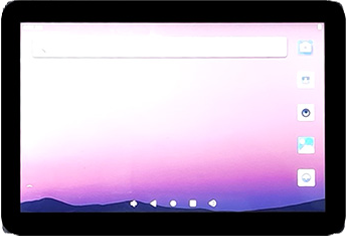

PP-101/156W-3399
15.6-inch Arm-based open-frame touch PC
Applications:
  • Kiosks
  • Point-of-sale (PoS) displays
  • Other retail and commercial applications
Complete Specification
PP-101/156W-3568
10.1 and 15.6-inch Arm-based open frame touch PC
Applications:
  • Industrial or commercial environments
  • Mounted onto a panel or enclosure
Complete Specification
Tinker Board Use Cases
Arrow Offers a Comprehensive Range of Lifecycle Services for Your ASUS IoT Tinker Boards
From hardware to software, integration, and systems, Arrow’s Intelligent Solutions help to embed it, connect it, and bring it all together. We offer a full suite of services from design engineering to integration, manufacturing, and fulfillment, enabling you to deliver the latest technologies to market – quickly and efficiently.
System and Design Engineering
Leverage our expertise to design solutions, select the right components, and optimize for performance and cost.
Supply Chain Management
Minimize supply disruptions with best-in-class processes, world-class systems, and infrastructure, extensive global footprint, and reach.
Global Integration Services
Streamline production with services that span from basic kitting to hardware configuration, to complete rack enclosure set-up and cabling.
Product Fulfillment
Improve order on-time delivery and enhance your customer service levels. Reduce overhead costs and streamline operations.
Support and Installation
Tailored programs to meet your needs including call support, forward-stocking locations, and onsite service.
Financial Services
Offerings include a mix of operational expense, capital expense, and outcome-based models to meet key financial metrics.
About ASUS IoT
ASUS IoT is a sub-brand of ASUS dedicated to the creation of incredible solutions in the fields of AI and IoT with the mission to become a trusted provider of embedded systems and partner to the wider AIoT solutions ecosystem. ASUS IoT strives to deliver best-in-class products and services across diverse vertical markets, and to partner with customers in the development of fully integrated and rapid time-to-market applications that drive efficiency – providing convenient, efficient and secure living and working environments for people everywhere.
